WD BEARINGS FOR INDUSTRIAL PLANETARY GEARBOXES

2025-05-09

Summary

Modern industrial planetary gearboxes are now being developed with a trend toward a smaller envelope but with an increased power level. This places high requirements on the rolling bearings being used. WD provides full-complement Cylindrical Roller Bearings of higher quality for high-power-level gearboxes. This type of bearing features heavy loading capacity, long lifespan, high reliability, low friction and noise during operation, a compact structure, and a simple installation process.

Bearing Structure

For a high load carrying capacity, the bearings are full complement designed and can be divided into "single row" and "double row" according to the rolling elements. According to installation requirements, the snap rings can be located between or by the sides of the two rows of rollers. Mating snap rings and spacers can be provided.

A plastic protection ring is used for bearings without outer rings so that the installation is simple for the customer, as well as protects the bearing from damage during transportation.

Bearing Capacities

Logarithmic curved rollers are used to increase the load carrying capacity and lifetime. There are two high-strength ribs in the inner ring, so the bearing can afford some axial loading and realise axially bidirectional guidance through the snap ring and spacer. In assembly, the mating shaft should be done with a high-enough abutment shoulder, which is perpendicular to the bearing axes, to avoid bearing axial creep.

No pre-lubrication is applied for the bearings, so either oil or grease can be applied during usage in accordance as requested.

Special surface treatment, such as phosphating or black oxide, is available to improve the run-in capability, which makes these bearings particularly suitable for slippery applications.

For working conditions that involve continuous use, the minimum radial load applied should conform to Cor/P < 60. The limiting speed must not be exceeded even under favourable operating and cooling conditions.

Bearing Fit Design

Fit

The inner ring is interference fitted with the shaft due to the circumferentia load on the inner ring.

	Bearing ID d mm		Load	Shaft tolerance
Circumferential load on inner ring	over	incl.	Load	Normal	Precise
		60	low	j6	j5
			normal	k6	k5
			high	k6	k5
	60	200	low	k6	k5
			normal	m6	m5
			high	n6	n5
	200	500	low	m6	m5
			normal	m6	m5
			high	p6	/

Geometrical tolerance of bearingseating surfaces:

Shaft diameter d mm		Diameter tolerance μm		Roundness tolerance μm	Parallelism tolerance μm	Axial runout tolerance of abutment shoulders μm
Over	Incl.	Normal	Precise	Roundness tolerance μm	Parallelism tolerance μm	Axial runout tolerance of abutment shoulders μm
	18	11	8	2.5	5	5
18	30	13	9	3	6	6
30	50	16	11	3.5	7	7
50	80	19	13	4	8	8
80	120	22	15	5	10	10
120	180	25	18	6	12	12
180	250	29	20	7	14	14

Bearing housing bore diameter d mm		Diameter tolerance μm		Roundness tolerance μm	Parallelism tolerance μm	Axial runout tolerance of abutment shoulders μm
Over	Incl.	Normal	Precise	Roundness tolerance μm	Parallelism tolerance μm	Axial runout tolerance of abutment shoulders μm
18	30	21	13	4.5	9	9
30	50	25	16	5.5	11	11
50	80	30	19	6.5	13	13
80	120	35	22	7.5	15	15
120	180	40	25	9	18	18
180	250	46	29	10	20	20

Raceways

In rolling bearings without outer rings, the mating gear inner diameter is used as an outer raceway. The raceway must be hardened and precision machined. The axial washer and abutment shoulders should also be precision machined and resistant to wear.

Through-hardening steels such as 100Cr6/GCr15 and case-hardening steels such as 16MnCr5, 16NiMo6/20CrMnTi, and 20CrMo are suitable as materials.

The raceway hardness must be harder than HRC58 (HV650); otherwise, the load-carrying capacity will decrease. The basic dynamic loading, Cor, and static loading, Cr, can be adjusted by reducing the hardness factor (for details, please contact WD engineers).

The wall thickness between the raceway and tooth base should be at least 2.5 times the modulus.

The raceway must be ground. For roundness, parallelism, and roughness (Ra), refer to the table below. The load-carrying capacity will decrease if Ra is out of tolerance.

Raceway diameter mm		Roundness tolerance μm	Parallelism tolerance μm	Mean roughness Ra μm
Over	Incl.	Roundness tolerance μm	Parallelism tolerance μm	Normal	Precise
10	18	4	4	0.2	0.1
18	30	5	5	0.2	0.1
30	50	6	7	0.2	0.1
50	80	7	9	0.2	0.1
80	120	8	11	0.3	0.15
120	150	9	13	0.4	0.2
150	180	13	14	0.4	0.2
180	250	15	15	0.4	0.2

Bearing Accuracy and Clearance

Accuracy

The dimensional and running tolerances of the bearingscorrespond to tolerance class PN to DIN 620.

Bearing ID d mm		Envelope circle diameter Ew mm
Tolerance of envelope circle diameter Ew	over	incl.	Upper	Lower
		40	0	-0.010
	40	65	0	-0.015
	65	120	0	-0.020
	120	200	0	-0.025
	200	250	0	-0.030

Radial internal clearance

For the bearings without an outer ring, the planetary gear fulfils the function of the outer raceway. So the bore of the planetary gearbox is determined by the combination of the selected radial clearance (C2, CO, C3, C4) and the envelope circle diameter, Ew.

Bore diameter d mm		Bore tolerance for planetary gearboxes μm		C2 radial clearance μm		Bore tolerance for planetary gearboxes μm		C0 radial clearance μm		Bore tolerance for planetary gearboxes μm		C3 radial clearance μm		Bore tolerance for planetary gearboxes μm		C4 radial clearance μm
Over	Incl.	Upper	Lower	Min	Max	Upper	Lower	Min	Max	Upper	Lower	Min	Max	Upper	Lower	Min	Max
	30	+15	0	0	25	+35	+20	20	45	+50	+35	35	60	+65	+50	50	75
30	40	+20	+5	5	30	+40	+25	25	50	+60	+45	45	70	+75	+60	60	85
40	50	+20	+5	5	35	+40	+25	25	50	+65	+50	50	80	+85	+70	70	100
50	65	+25	+10	10	40	+40	+55	40	70	+75	+60	60	90	+95	+80	80	110
65	80	+25	+10	10	45	+40	+55	40	75	+80	+65	65	100	+105	+90	90	125
80	100	+30	+15	15	50	+65	+50	50	85	+90	+75	75	110	+120	+105	105	140
100	120	+35	+15	15	55	+70	+50	50	90	+105	+85	85	125	+145	+125	125	165
120	140	+35	+15	15	60	+80	+60	60	105	+120	+100	100	145	+165	+145	145	190
140	160	+45	+20	20	70	+95	+70	70	120	+140	+115	115	165	+190	+165	165	215
160	180	+50	+25	25	75	+100	+75	75	125	+145	+120	120	170	+195	+170	170	220
180	200	+65	+35	35	90	+120	+90	90	145	+170	+140	140	195	+225	+195	195	250
200	225	+75	+45	45	105	+135	+105	105	165	+190	+160	160	220	+250	+220	220	280
180	200	+80	+45	45	110	+145	+110	110	175	+205	+170	170	235	+270	+235	235	300

e.g: For RNN50V-9, the bearing Ew is -0.015mm. If the selected clearance is CO (30-60μm), then the bore tolerance of the planetary gearbox is (+30/+45μm).

Design Cases

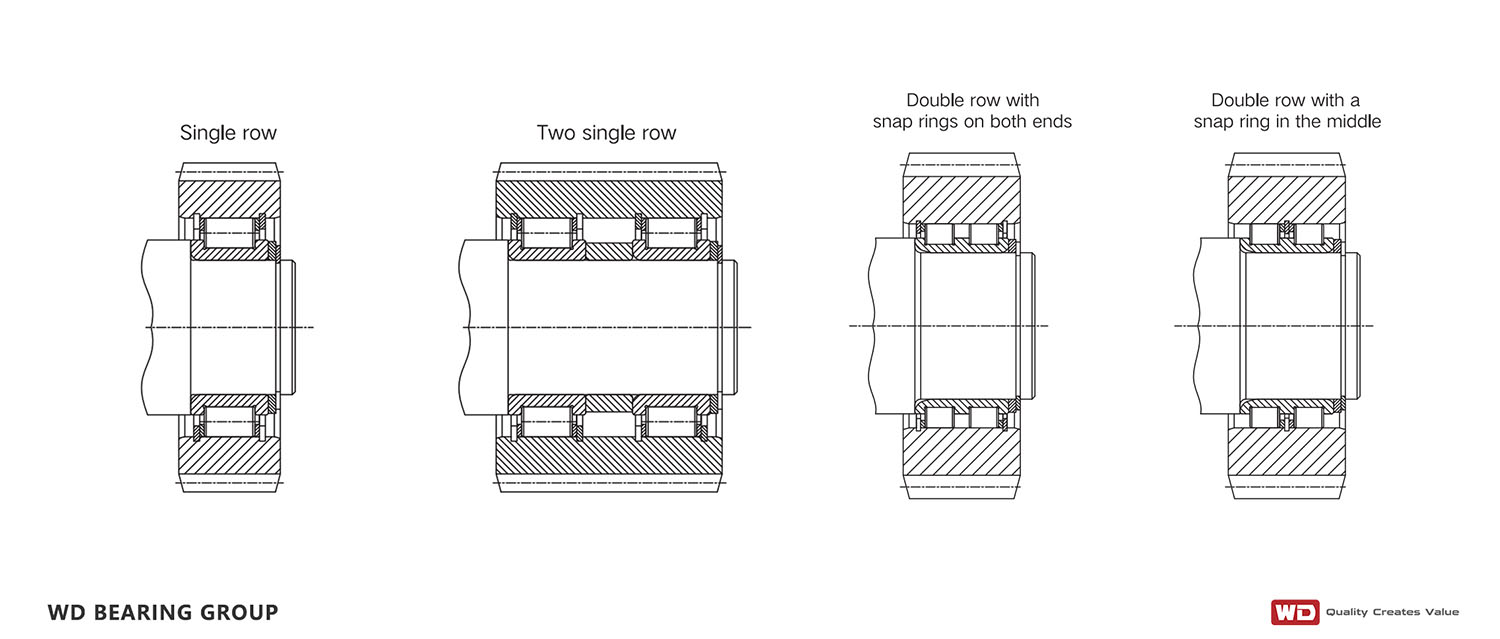

Design Cases.jpg

Product Catalog

Single row A type cylindrical roller bearings without outer rings

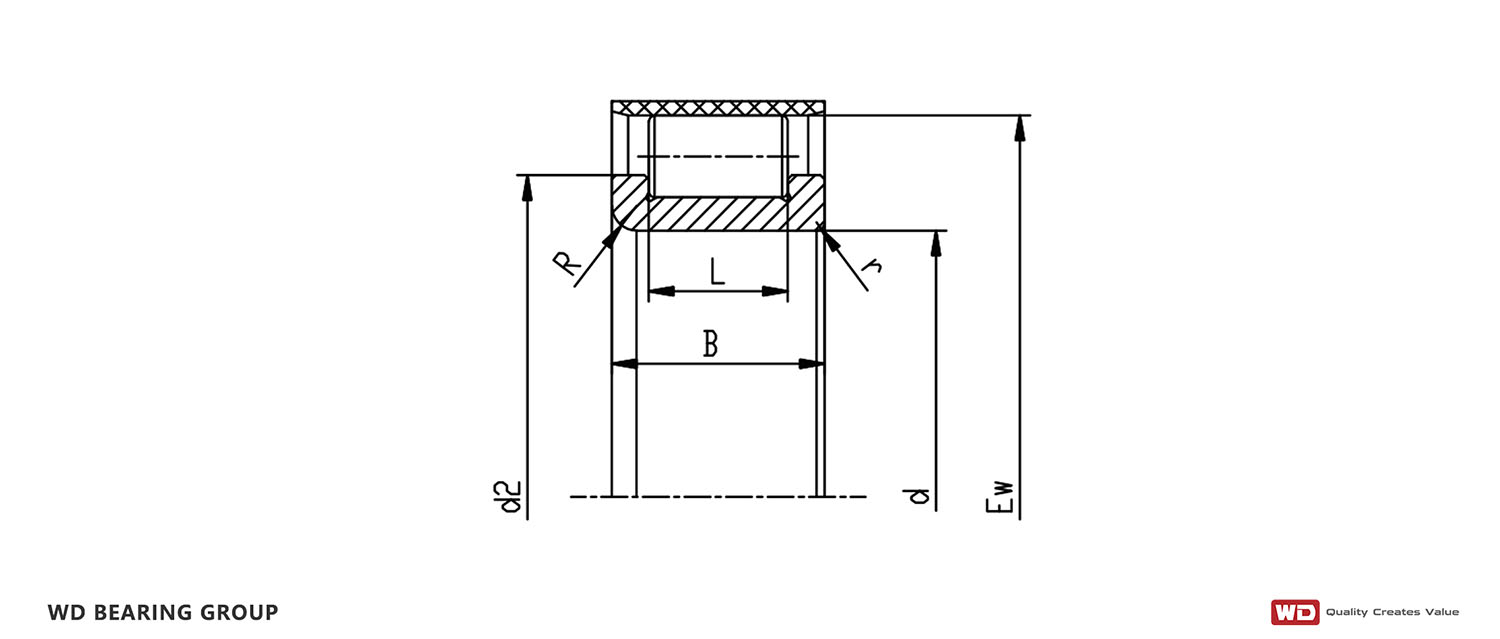

Single row A type cylindrical roller bearings without outer rings.jpg

Without snap ring and washer
Designation	ID	Envelope cirdle dia.	Width	Inner OD	Roller width	Rmin	rmin	Cr	Cor	Limit speed	ref. P/N 1	ref. P/N 2
Designation	d mm	Ew mm	B mm	d2 mm	L mm	mm	mm	KN	KN	nG rpm	ref. P/N 1	ref. P/N 2
RN19V-1	19	33.829	19	28.00	15	2.00	0.30	37.8	46.5	10800	2522
RN20V-5	20	36.810	16	28.60	9	2.60	0.70	27.5	27.9	10500	2165
RN20V-6	20	40.700	19	31.40	12	0.60	0.60	40.0	41.0	9800	2725
RN20V-7	20	36.810	16	29.00	9	0.60	0.60	30.5	26.5	10500		RSL183004-A
RN20V-8	20	41.470	18	30.30	12	1.00	1.00	45.5	37.0	9700		RSL182204-A
RN24V-3	24	40.167	24	34.20	19.8	2.50	0.30	54.6	78.9	9000	2523
RN25V-3	25	46.520	18	35.80	12	3.00	0.50	45.0	48.1	8400	2678
RN25V-6	25	46.520	22	35.20	16	0.60	0.60	57.5	63.5	8400	2785
RN25V-7	25	42.510	16	34.60	9	0.60	0.60	35.0	32.5	8900		RSL183005-A
RN25V-8	25	46.520	18	35.30	12	1.00	1.00	51.0	44.5	8400		RSL182205-A
RN25V-9	25	53.717	24	36.70	15	1.10	1.10	63.0	57.0	7600		RSL182305-A
RN25V-10	25	53.550	28	37.40	19	0.60	0.60	76.3	77.5	7600	2726
RN30V-3	30	54.001	31	44.48	25	3.00	0.30	91.6	133.2	7000	2524
RN30V-4	30	55.190	20	42.50	14	1.00	1.00	60.8	66.3	7000	2677
RN30V-7	30	49.600	19	40.00	10	1.00	1.00	45.0	43.0	7600		RSL183006-A
RN30V-8	30	55.190	20	42.00	14	1.00	1.00	70.0	64.0	7000		RSL182206-A
RN30V-9	30	62.300	27	43.50	18	1.10	1.10	87.0	85.0	6400		RSL182306-A
RN35V-1	35	63.970	23	47.50	15	1.10	1.10	76.0	80.5	6100	2676
RN35V-2	35	73.020	35	49.70	26	1.10	1.10	136.7	145.6	5400	2707
RN35V-7	35	55.520	20	45.00	11	1.00	1.00	55.0	55.0	6700		RSL183007-A
RN35V-8	35	63.970	23	47.00	15	1.10	1.10	88.0	78.0	6100		RSL182207-A
RN35V-9	35	72.680	31	51.00	20	1.50	1.50	113.0	112.0	5500		RSL182307-A
RN40V-7	40	61.740	21	50.50	12	1.00	1.00	66.0	68.0	6000		RSL183008-A
RN40V-8	40	70.940	23	54.00	15	1.10	1.10	97.0	91.0	5400		RSL182208-A
RN40V-9	40	83.124	33	58.00	24	1.50	1.50	152.0	155.0	4850		RSL182308-A
RN45V-7	45	66.850	23	55.50	12	1.00	1.00	70.0	76.0	5500		RSL183009-A
RN45V-8	45	74.430	23	57.50	15	1.10	1.10	101.0	98.0	5100		RSL182209-A
RN45V-9	45	88.322	36	61.50	24	1.50	1.50	162.0	165.0	4450		RSL182309-A
RN50V-1	50	72.000	31	62.00	24	4.00	0.30	112.0	172.5	5100	2645
RN50V-2	50	81.700	34	66.60	26	1.50	1.50	147.8	204.4	4600	2704
RN50V-3	50	109.270	50	70.90	36	1.00	1.00	270.0	287.0	3700	2790
RN50V-7	50	72.330	23	59.00	14	1.00	1.00	88.0	96.0	5100		RSL183010-A
RN50V-8	50	81.400	23	64.40	15	1.10	1.10	109.0	111.0	4600		RSL182210-A
RN50V-9	50	98.718	40	68.50	28	2.00	2.00	205.0	215.0	4050		RSL182310-A
RN55V-1	55	88.810	25	70.80	18	1.50	1.50	120.2	151.5	4200	2679
RN55V-7	55	83.540	26	68.50	17	1.10	1.10	120.0	136.0	4400		RSL183011-A
RN55V-8	55	88.810	25	70.00	18	1.50	1.50	140.0	148.0	4200		RSL182211-A
RN55V-9	55	109.110	43	76.00	30	2.00	2.00	242.0	255.0	3700		RSL182311-A
RN60V-1	60	86.740	26	72.00	17	1.10	1.10	106.5	146.9	4200	2626
RN60V-2	60	99.170	28	77.20	20	1.50	1.50	148.0	184.0	3800	2813
RN60V-7	60	86.740	26	71.70	17	1.10	1.10	123.0	145.0	4200		RSL183012-A
RN60V-8	60	99.170	28	76.80	20	1.50	1.50	169.0	176.0	3800		RSL182212-A
RN60V-9	60	115.620	46	82.50	30	2.10	2.10	260.0	280.0	3400		RSL182312-A
RN65V-1	65	93.090	26	78.50	17	1.10	1.10	112.1	161.0	3900	2646
RN65V-2	65	120.970	60	85.80	44	1.50	1.50	370.0	447.0	3100	2727
RN65V-7	65	93.090	26	78.00	17	1.10	1.10	130.0	159.0	3900		RSL183013-A
RN65V-8	65	106.250	31	82.30	22	1.50	1.50	198.0	210.0	3550		RSL182213-A
RN65V-9	65	126.690	48	90.00	34	2.10	2.10	315.0	355.0	3100		RSL182313-A
RN70V-1	70	100.280	30	81.50	18	1.10	1.10	132.1	178.4	3650	2627
RN70V-7	70	100.280	30	81.50	18	1.10	1.10	153.0	176.0	3650		RSL183014-A
RN70V-8	70	111.010	31	87.00	22	1.50	1.50	181.0	223.0	3350		RSL182214-A
RN70V-9	70	132.140	51	94.00	36	2.10	2.10	345.0	390.0	3000		RSL182314-A
RN75V-1	75	107.900	30	89.20	18	1.10	1.10	140.0	196.0	3400	2578
RN75V-2	75	107.900	30	89.20	18	3.50	1.50	140.0	196.0	3400	2684
RN75V-7	75	107.900	30	89.00	18	1.10	1.10	162.0	194.0	3400		RSL183015-A
RN75V-8	75	115.780	31	92.00	22	1.50	1.50	187.0	236.0	3200		RSL182215-A
RN75V-9	75	143.220	55	102.00	40	2.10	2.10	410.0	4750	2750		RSL182315-A
RN80V-7	80	116.990	34	95.00	20	1.10	1.10	173.0	224.0	3150		RSL183016-A
RN80V-8	80	125.810	33	98.50	24	2.00	2.00	223.0	280.0	3000		RSL182216-A
RN80V-9	80	154.240	58	110.00	44	2.10	2.10	480.0	560.0	2550		RSL182316-A
RN85V-1	85	121.440	34	100.00	20	1.10	1.10	173.5	241.5	3000	2661
RN85V-2	85	133.210	36	104.50	26	2.00	2.00	247.7	328.8	2800	2675
RN85V-7	85	121.440	34	99.50	20	1.10	1.10	178.0	235.0	3000		RSL183017-A
RN85V-8	85	133.210	36	104.50	26	2.00	2.00	255.0	3200	2800		RSL182217-A
RN85V-9	85	163.010	60	118.50	44	3.00	3.00	510.0	620.0	2400		RSL182317-A
RN90V-1	90	130.110	37	106.80	22	1.50	1.50	208.0	286.0	2800	2628
RN90V-2	90	176.210	80	122.00	55	2.00	2.00	638.0	785.0	2200	2791
RN90V-7	90	130.110	37	106.50	22	1.50	1.50	207.0	280.0	2800		RSL183018-A
RN90V-8	90	140.610	40	110.00	28	2.00	2.00	285.0	365.0	2650		RSL182218-A
RN90V-9	90	165.260	64	117.50	48	3.00	3.00	560.0	660.0	2400		RSL182318-A
RN95V-9	95	174660	67	126.60	48	3.00	3.00	580.0	720.0	2240		RSL182319-A
RN100V-1	100	139.650	37	116.40	22	1.50	1.50	212.6	3140	2600	2653
RN100V-7	100	139.650	37	116.00	22	1.50	1.50	218.0	305.0	2600		RSL183020-A
RN100V-8	100	162.810	46	127.50	34	2.10	2.10	390.0	51.0	2300		RSL182220-A
RN100V-9	100	187.303	73	133.00	55	3.00	3.00	710.0	860.0	2110		RSL182320-A
RN110V-7	110	156.130	45	127.50	26	2.00	2.00	285.0	395.0	2350		RSL183022-A
RN110V-8	110	177.000	53	137.00	36	2.10	2.10	450.0	580.0	2130		RSL182222-A
RN110V-9	110	218.270	80	151.50	56	3.00	3.00	840.0	970.0	1840		RSL182322-A
RN120V-7	120	167.580	46	139.00	26	2.00	2.00	300.0	435.0	2170		RSL183024-A
RN120V-8	120	192.320	58	151.00	40	2.10	2.10	530.0	720.0	1950		RSL182224-A
RN120V-9	120	231.386	86	164.50	64	3.00	3.00	1000.0	1230.0	1710		RSL182324-A
RN130V-2	130	207.120	64	162.30	44	3.00	3.00	620.0	875.0	1810	2768
RN130V-7	130	183.810	52	149.00	34	2.00	2.00	430.0	610.0	2000		RSL183026-A
RN130V-8	130	207.120	61	162.30	44	3.00	3.00	620.0	850.0	1810		RSL18226-A
RN130V-9	130	247.900	93	176.00	68	4.00	4.00	1120.0	1400.0	1600		RSL182326-A
RN140V-1	140	264.447	102	186.00	70	4.00	4.00	1190.0	1555.0	1400	2680
RN140V-7	140	197.820	53	163.00	34	2.00	2.00	455.0	6700	1840		RSL183028-A
RN140V-8	140	221.920	67	174.00	48	3.00	3.00	720.0	1000.0	1690		RSL182228-A
RN140V-9	140	264.447	102	187.50	72	4.00	4.00	1260.0	1580.0	1500		RSL182328-A
RN150V-7	150	206.800	56	170.50	34	2.10	2.10	475.0	700.0	1760		RSL183030-A
RN150V-8	150	236.710	73	185.50	52	3.00	3.00	830.0	1180.0	1580		RSL182230-A
RN150V-9	150	286.490	108	203.30	80	4.00	4.00	1490.0	1900.0	1380		RSL182330-A

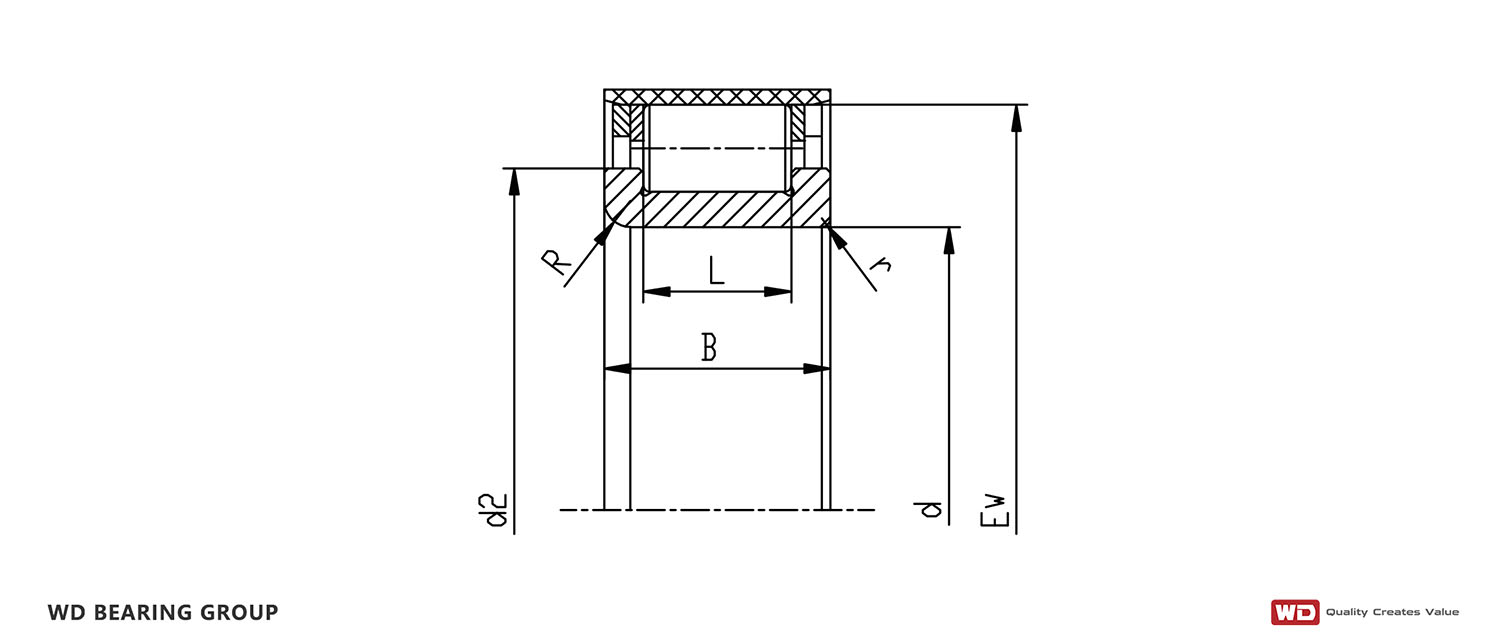

Single row B type cylindrical roller bearings without outer rings

2 snap rings and 2 washers
Designation	ID	Envelope cirdle dia.	Width	Inner OD	Roller width	Rmin	rmin	Cr	Cor	Limit speed	ref. P/N 1	ref. P/N 2
Designation	d mm	Ew mm	B mm	d2 mm	L mm	mm	mm	KN	KN	nG rpm	ref. P/N 1	ref. P/N 2
RN17V-1	17	28.360	19	23.70	13	2.00	0.30	27.0	33.0	11500	2662
RN18V-1	18	30.470	20	25.00	13	2.00	0.30	28.5	33.6	11000	2663
RN18V-2	18	30.520	13	25.15	8	2.00	0.50	19.9	21.2	11000	2181
RN20V-1	20	33.830	18	27.80	10	2.60	0.30	27.0	30.1	10500	2654
RN20V-2	20	33.850	20	28.60	13	2.50	0.30	31.9	37.3	10500	2664
RN20V-3	20	33.900	16	28.60	10	2.60	0.70	27.0	30.0	10500	2486
RN22V-1	22	34.720	23	29.80	16	2.50	0.30	37.0	54.0	9900	2665
RN24V-1	24	38.610	23	32.50	16	2.50	0.30	42.7	56.6	9000	2666
RN24V-2	24	38.610	25	32.50	18	2.50	0.30	47.2	64.5	9000	2775
RN25V-2	25	42.510	16	34.80	9	2.50	0.50	31.2	34.4	8900	2404
RN25V-4	25	46.520	18	35.80	12	3.00	0.50	45.0	48.1	8400	2193
RN27V-1	27	41.800	25	35.80	18	2.50	0.30	50.0	71.7	8700	2667
RN30V-1	30	49.600	19	40.30	10	3.50	0.50	40.2	44.9	7600	2405
RN38V-1	38	54.690	20	49.50	12	4.00	1.00	46.8	67.4	6500	2503

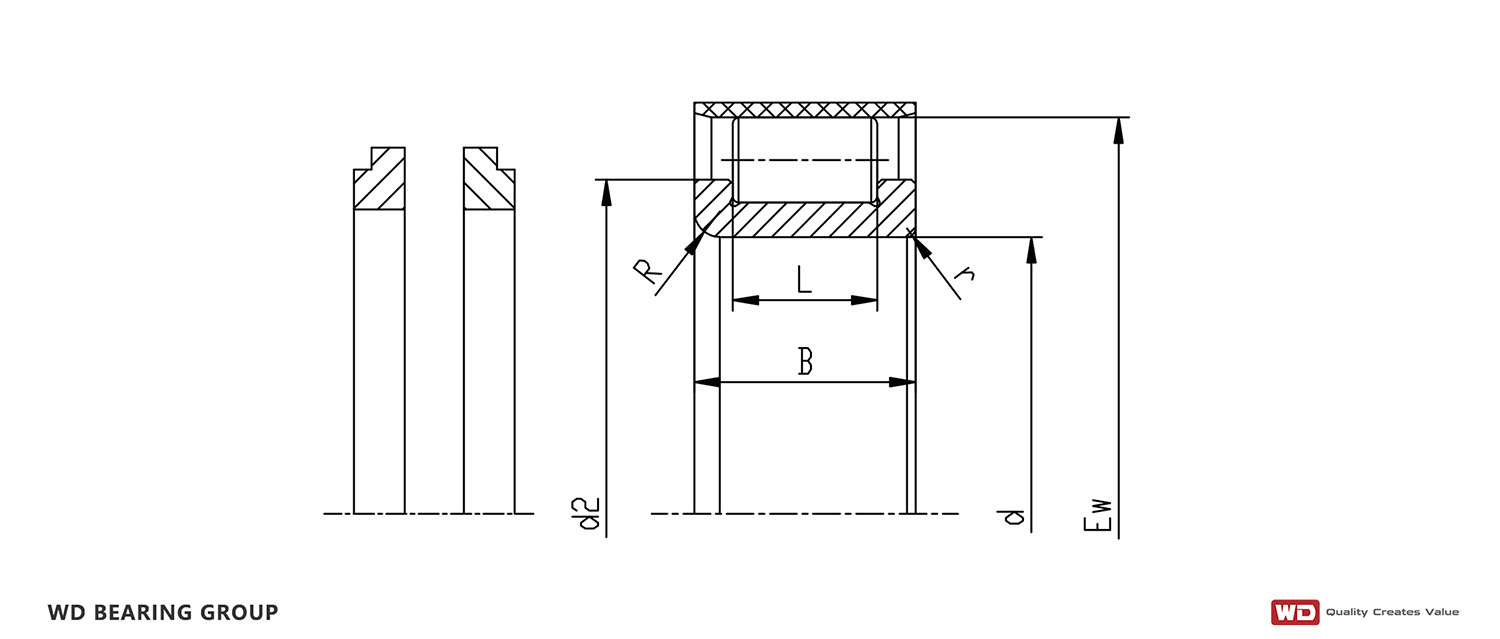

Single row C type cylindrical roller bearings without outer rings

Two stepped snap rings
Designation	ID	Envelope cirdle dia.	Width	Inner OD	Roller width	Rmin	rmin	Cr	Cor	Limit speed	ref. P/N 1	ref. P/N 2
Designation	d mm	Ew mm	B mm	d2 mm	L mm	mm	mm	KN	KN	nG rpm	ref. P/N 1	ref. P/N 2
RN15V-1	15	27.116	14	22.20	8	1.80	0.30	18.0	19.4	12000	2671
RN20V-4	20	35.500	14	29.50	8	1.50	0.20	23.2	25.2	10500	2512
RN25V-1	25	42.510	12	34.80	6	2.60	0.30	21.9	21.8	8900	2625-2794
RN25V-5	25	46.520	18	35.80	12	3.00	0.50	45.0	48.1	8400	2767-2795
RN30V-2	30	50.740	14	40.15	7.5	3.00	0.30	32.6	32.9	7600	2529

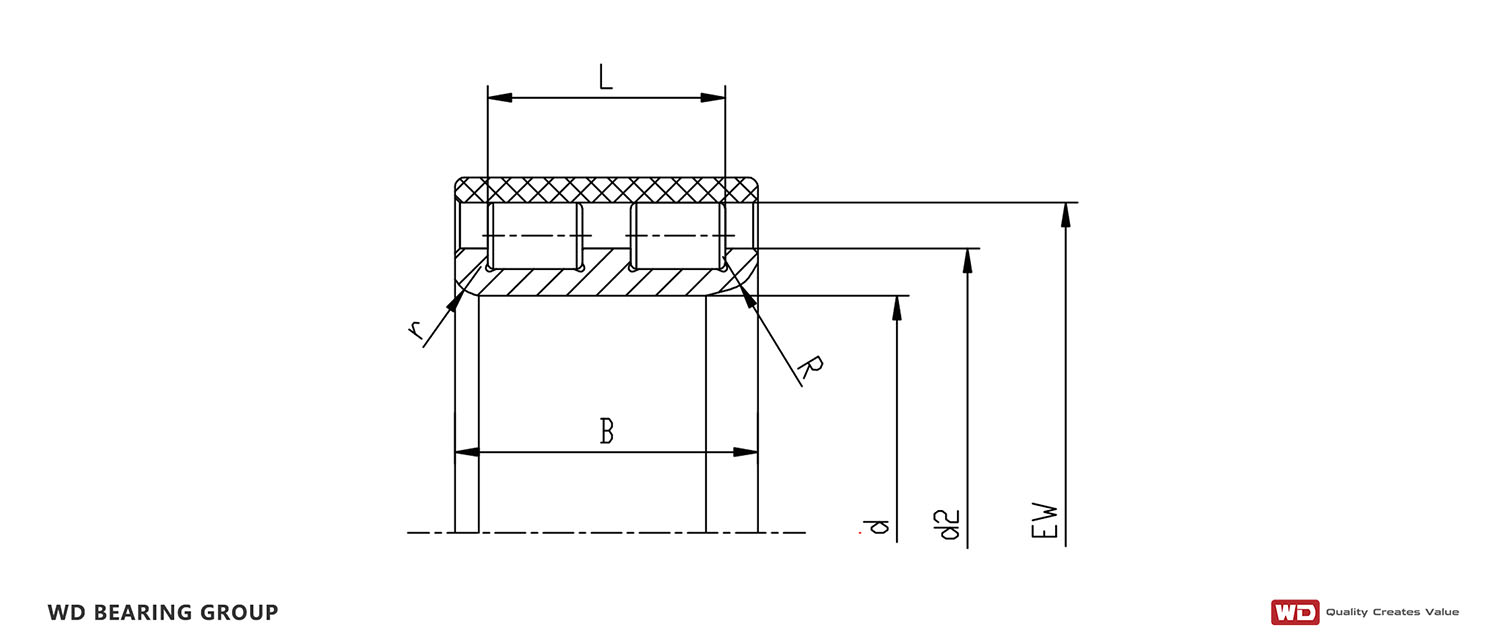

Double row A type cylindrical roller bearings without outer rings

Without snap ring and washer
Designation	ID	Envelope cirdle dia.	Width	Inner OD	Roller width	Rmin	rmin	Cr	Cor	Limit speed	ref. P/N 1	ref. P/N 2
Designation	d mm	Ew mm	B mm	d2 mm	L mm	mm	mm	KN	KN	nG rpm	ref. P/N 1	ref. P/N 2
RNN35V-4	35	55.52	36	45	28	0.6	0.6	83.6	113.6	6700	2470
RNN50V-3	50	69.58	40	60.3	33.3	3	0.3	118	202	5300	2719
RNN50V-7	50	72	31	62	24	4	0.3	111.8	172.5	5100	2645
RNN60V-1	60	83.83	46	71	39.8	2.5	0.3	171.7	289.8	4400	2820

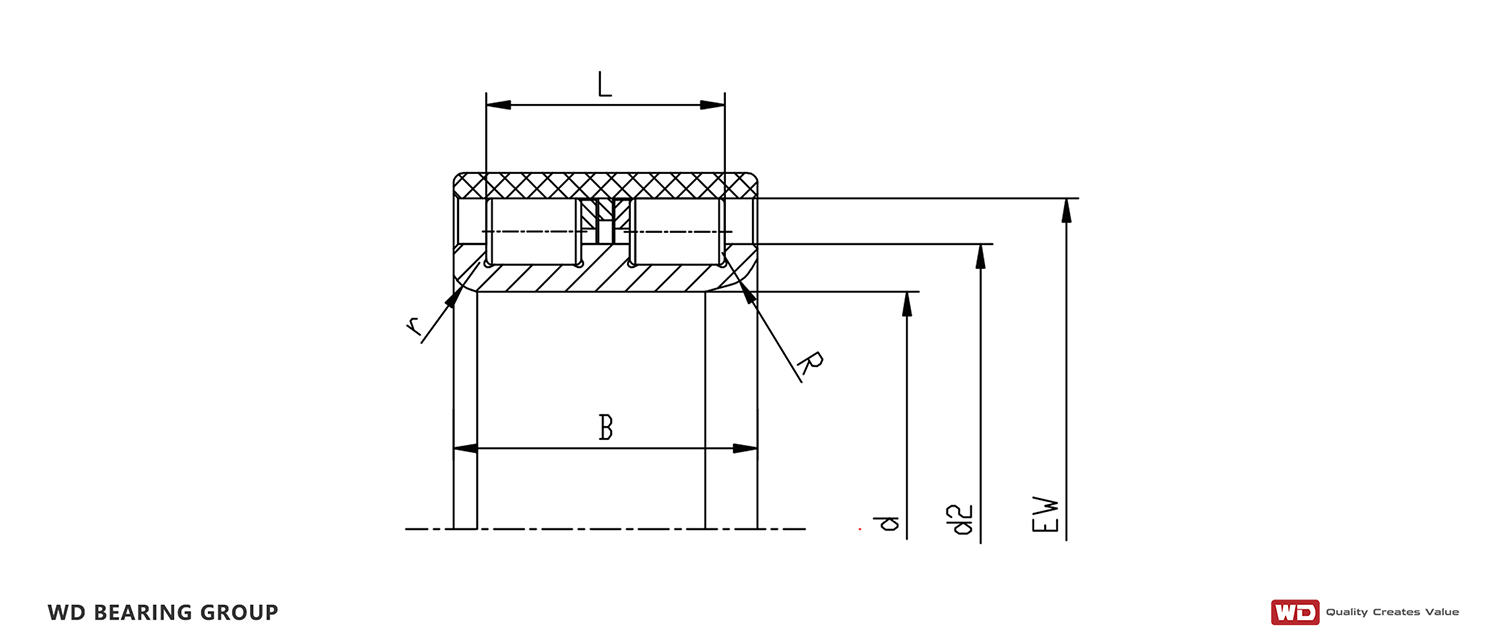

Double row B type cylindrical roller bearings without outer rings

1 snap ring and 2 washers
Designation	ID	Envelope cirdle dia.	Width	Inner OD	Roller width	Rmin	rmin	Cr	Cor	Limit speed	ref. P/N 1	ref. P/N 2
Designation	d mm	Ew mm	B mm	d2 mm	L mm	mm	mm	KN	KN	nG rpm	ref. P/N 1	ref. P/N 2
RNN18V-1	18	32.3	20.5	25.9	14.9	2	0.3	24.1	25.7	10800	2699
RNN20V-9	20	36.81	30	29	23	0.6	0.6	46.5	52	10500		RSL185004
RNN22V-1	22	36.2	30	30.8	23	2.5	0.7	47.5	68.8	9800	2435
RNN22V-2	22	38.75	22.5	31	17.3	2	0.3	34.6	38.1	9700	2535
RNN24V-1	24	40.25	26	34.3	20	2.5	0.3	44	59.8	9000	2400
RNN24V-2	24	40.25	34	34.3	24	2	2	53.3	76.4	9000	2597
RNN25V-1	25	40.25	26	34.3	20	2.5	0.3	44	59.8	8900	2686
RNN25V-2	25	40.25	32	34.3	24	3	0.3	53.3	76.4	8900	2613
RNN25V-9	25	42.51	30	34.5	23	0.6	0.6	53	64	8900		RSL185005
RNN28V-1	28	43.35	26.5	37.3	20	3	0.3	46.6	66.1	8500	2519
RNN28V-2	28	44.45	34	36.5	27.6	2.5	0.3	70.8	99.8	8500	2776
RNN30V-1	30	46.4	32	38.7	27.6	2	0.3	73.2	105.7	7600	2594
RNN30V-2	30	48.25	40	40.6	32	2.5	2.5	85.8	131.6	7600	2687
RNN30V-3	30	49.6	24	40	18	3	0.3	50.8	60.6	7600	2178
RNN30V-4	30	49.6	25	40	18.9	3	0.3	50.8	60.6	7600	2651
RNN30V-6	30	49.6	26	40	20	3	0.3	57.1	70.4	7600	2198
RNN30V-7	30	49.6	30	40	24	2.6	0.3	69.1	90	7600	2683
RNN30V-9	30	49.6	34	40	26	1	1	69	84	7600		RSL185006
RNN32V-2	32	46.6	28	41	22	3	0.3	54.3	82.5	7600	2183-2439
RNN32V-3	32	48.24	34	41	27.6	2.5	0.3	76	112	7500	2668
RNN32V-4	32	51.75	25	42.5	19.9	3	0.3	59.1	74.7	7400	2496
RNN32V-5	32	51.75	29	42.5	24	3	0.3	71.5	95.5	7400	2579
RNN35V-1	35	49.8	28	43.9	22	3	0.3	56.8	89.7	7400	2434
RNN35V-2	35	50.2	29	42.5	23.6	2.5	0.3	66.7	96.6	7400	2634
RNN35V-3	35	52.09	26.5	44.5	20.9	2.5	0.3	56.6	79.4	7000	2488-2723
RNN35V-5	35	55.52	36	45	28	0.6	0.6	83.6	113.6	6700	2520
RNN35V-6	35	55.52	36	45	28	2.5	0.3	83.6	113.6	6700	2706
RNN35V-7	35	59.19	27	48.2	21.33	3	0.3	68.4	85.5	6500	2721
RNN35V-8	35	64.3	26.5	52.9	20.9	2.5	0.3	72.9	95.7	6000	2528
RNN35V-9	35	55.52	36	45	28	1	1	83	107	6700		RSL185007
RNN38V-1	38	52.95	28	47	22	3	0.3	59.2	97	6500	2164
RNN38V-2	38	52.95	29.5	47.5	21.9	3.2	0.1	59.2	97	6500	2504
RNN38V-3	38	52.95	29.5	47.5	21.9	3.7	0.1	59.2	97	6500	2806
RNN38V-4	38	54.69	29.5	49.2	21.6	4	0.1	63	99	6500	2458
RNN38V-5	38	54.69	29.5	49.5	20.7	4	0.1	56.9	86.7	6500	2464
RNN38V-6	38	57.91	38	48	32	3	0.3	106	156	6300	2669
RNN40V-1	40	57.81	34	50	28	3.2	0.3	86.1	141.2	6200	2168
RNN40V-2	40	57.81	34	50	28	3.2	0.3	96	141	6200	2827
RNN40V-4	40	61.74	28	50.2	20.9	3	0.3	70.6	90.6	6000	2179
RNN40V-5	40	61.74	32	50.2	24.9	3	0.3	85.4	115.8	6000	2180
RNN40V-6	40	61.74	35.5	50.2	27.6	2.6	0.3	100	140	6000	2650
RNN40V-9	40	61.74	38	50.5	30	1	1	100	133	6000	RSL185008
RNN42V-1	42	60.75	37	51.5	30.9	3	0.3	100.7	156.9	6000	2412
RNN42V-2	42	60.75	37	51.5	31.6	3	0.3	107.2	169.7	6000	2777
RNN44V-1	44	61.6	34	53.9	28	3.2	0.3	90.1	153	5800	2592
RNN44V-2	44	62.97	37	53.4	30.9	2.5	0.3	103.5	164.4	5800	2401
RNN45V-1	45	61.55	32	53.8	24.9	3	0.3	77.3	125.7	5800	2559
RNN45V-2	45	61.55	36	53.9	28.9	3	0.3	90	153	5800	2425
RNN45V-3	45	65.02	34	54.5	27.3	3	0.3	94.3	140.4	5600	2647
RNN45V-4	45	66.85	37.5	55.8	28.6	3.5	0.3	105.8	156.7	5500	2419-2722
RNN45V-5	45	66.85	37.5	55.8	28.6	3.5	0.3	123	157	5500	2828
RNN45V-9	45	66.85	40	55.5	30	1	1	106	148	5500		RSL185009
RNN46V-1	46	69.5	45	56.5	37.3	3.2	0.3	145	207	5300	2807
RNN50V-1	50	67.28	32	61	25.8	3.2	0.3	75.7	145.2	5300	2530
RNN50V-2	50	67.36	40	60.4	32.6	4	1	109	201	5300	2720
RNN50V-4	50	69.67	32	60.3	24.9	3	0.3	89.1	141	5300	2492
RNN50V-5	50	69.67	37.5	60.3	31.4	2.5	0.3	111.2	186.9	5300	2609
RNN50V-6	50	69.67	42.5	65/60.3	33.4	6	0.3	118	202	5300	2590
RNN50V-8	50	72.05	37	61.8	28.5	4	0.1	111.7	172.5	5100	2466
RNN50V-9	50	72.33	40	59.5	33	1	1	134	188	5100		RSL185010
RNN50V-10	50	72.33	39	59	32.5	3.2	0.3	130.9	194.3	5100	2518
RNN50V-11	50	72.33	40	59	33.1	1.1	1.1	130.9	194.3	5100	2432-2596
RNN50V-12	50	75.25	40	62	32.5	2.5	1	135	204.6	5000	2649
RNN50V-13	50	81.45	32	65	26.1	3	0.3	124.2	163.4	4600	2798
RNN55V-1	55	76.94	40	66	31.1	3	0.3	125	205	4900	2698
RNN55V-2	55	77.07	41	66	33.8	3	0.3	133.4	221.8	4800	2593
RNN55V-3	55	83.54	47	68.5	40.1	3.5	1.1	177.5	279.8	4500	2509-2685-2819
RNN55V-4	55	85.07	41	66	33.8	3	0.3	161	218	4400	2731
RNN55V-5	55	88.85	52	72.5	42.1	6.2	0.5	206	303	4300	2558-2674
RNN55V-9	55	83.54	46	68.5	39	1.1	1.1	182	275	4500		RSL185011
RNN60V-2	60	83.83	46	71	39.8	2.5	0.3	171.7	289.8	4400	2532-2724
RNN60V-3	60	83.83	47	71	39.8	2.5	0.3	171.7	289.8	4400	2495-2566
RNN60V-4	60	83.83	50	71	39.8	6.3	0.3	171.7	289.9	4400	2821
RNN60V-5	60	83.83	65	71	53.8	6.3	0.3	219.9	398.8	4400	2805
RNN60V-6	60	89.8	52	72.6	42.6	4	0.3	206.1	311	4100	2799
RNN60V-9	60	86.74	46	71.5	39	1.1	1.1	187	285	4200		RSL185012
RNN65V-1	65	89.8	48	78.5	40.6	4	0.3	173.5	329.3	4000	2656
RNN65V-3	65	93.1	58	78.5	49.6	3.5	0.3	237.6	422.7	3900	2527
RNN65V-9	65	93.09	46	78.8	39	1.1	1.1	197	315	3900		RSL185013
RNN70V-1	70	95.29	54	82.2	43.6	4	1	197	362	3750	2700-2702
RNN70V-2	70	100.28	54	81.5	42	1.1	1.1	226	357	3650	2507
RNN70V-9	70	100.28	54	81.5	42	1.1	1.1	233	350	3650		RSL185014
RNN75V-1	75	115.78	62	92.5	53	3.5	1.5	317	491	3200	2735
RNN75V-9	75	107.9	54	89	42	1.1	1.1	245	385	3400		RSL185015
RNN80V-1	80	111.76	62	93	52	4	1	290	505	3250	2703
RNN80V-2	80	112.75	60	93.1	50	1.1	1.1	274	449	3200	2610
RNN80V-3	80	122.1	70	96	60	4.2	0.3	377	583	3050	2657
RNN80V-9	80	116.99	60	95	47	1.1	1.1	290	440	3150		RSL185016
RNN85V-1	85	121.4	70	100	60	1.1	1.1	369	638	3000	2633
RNN85V-2	85	121.44	60	100	49	4	1	297.2	483.4	3000	2682
RNN85V-3	85	121.44	68	99.6	56	5.5	2	322	535	3000	2815
RNN85V-9	85	121.44	60	99.5	47	1.1	1.1	300	465	3000		RSL185017
RNN90V-1	90	130.11	72	106.8	58.7	5	1.5	346	573	2800	2734
RNN90V-9	90	130.11	67	106.5	52	1.5	1.5	350	550	2800		RSL185018
RNN100V-1	100	139.65	67	116.2	52	5	1.1	420	628	2600	2814
RNN100V-9	100	139.65	67	116	52	1.5	1.5	370	600	2600		RSL185020
RNN110V-2	110	156.13	80	127.9	62	6	1	480	813	2350	2736
RNN110V-9	110	156.13	80	128	62	2	2	485	770	2350		RSL185022
RNN120V-9	120	167.58	80	139	62	2	2	510	950	2170		RSL185024
RNN130V-9	130	183.81	95	149	78	2	2	730	1210	2000		RSL185026
RNN140V-1	140	197.82	95	163	81	5	2	757	1372	1840	2681
RNN140V-9	140	197.82	95	163	78	2	2	780	1340	1840		RSL185028
RNN150V-9	150	206.8	100	170.5	80	2.1	2.1	810	1390	1760		RSL185030
RSL185030	150	206.8	100	170.5	80	2.1	2.1	810	1390	1760

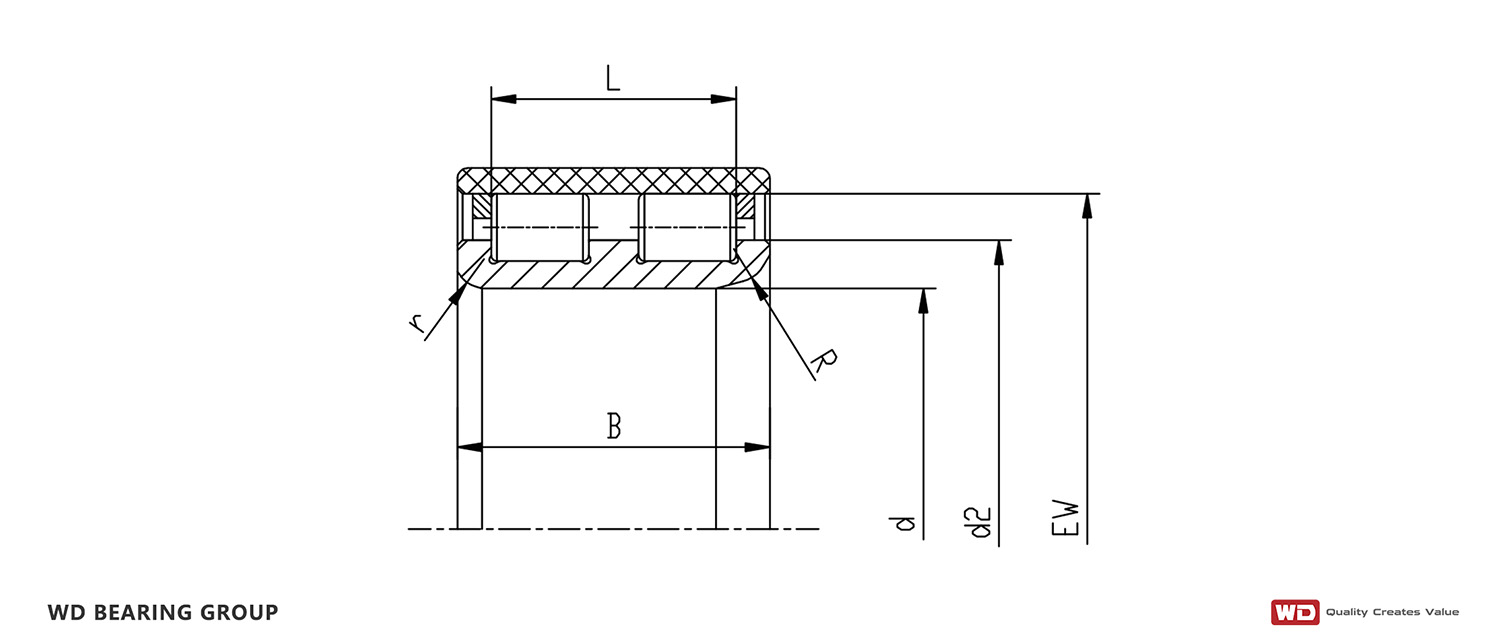

Double row C type cylindrical roller bearings without outer rings

2 washers
Designation	ID	Envelope cirdle dia.	Width	Inner OD	Roller width	Rmin	rmin	Cr	Cor	Limit speed	ref. P/N 1	ref. P/N 2
Designation	d mm	Ew mm	B mm	d2 mm	L mm	mm	mm	KN	KN	nG rpm	ref. P/N 1	ref. P/N 2
RNN30V-5	30	49.6	26	38.6	20	3	0.3	57	70.3	7600	2510
RNN32V-1	32	46.6	25	41	20.5	3	0.3	54.3	82.5	7600	2508
RNN40V-3	40	60.68	31	51.4	25.6	3.2	0.3	80.8	118.1	6000	2729
RNN40V-7	40	75.63	78	56	61.1	1.1	1.1	243.2	337.2	5500	2567
RNN45V-6	45	83.88	85	64.2	64.7	1.1	1.1	268	393.9	4500	2619
RNN55V-6	55	94.76	100	73.4	76.7	1.1	1.1	321.5	491.3	4000	2620
RNN65V-2	65	93.09	46	78.5	39	4	1.1	192.3	322	3900	2652-2783
RNN65V-4	65	109.66	110	83	83.7	1.5	1.5	442.1	677	3500	2617
RNN75V-2	75	127.55	120	98.7	90.6	2	2	534	870	2900	2640
RNN80V-4	80	141.92	130	106.7	100.6	2	2	716	1140	2700	2641
RNN95V-1	95	155.87	150	120.6	118.6	2	2	832	1426	2400	2642
RNN130V-1	130	183.81	95	149	78	5	0.3	717.3	1246.6	2000	2655

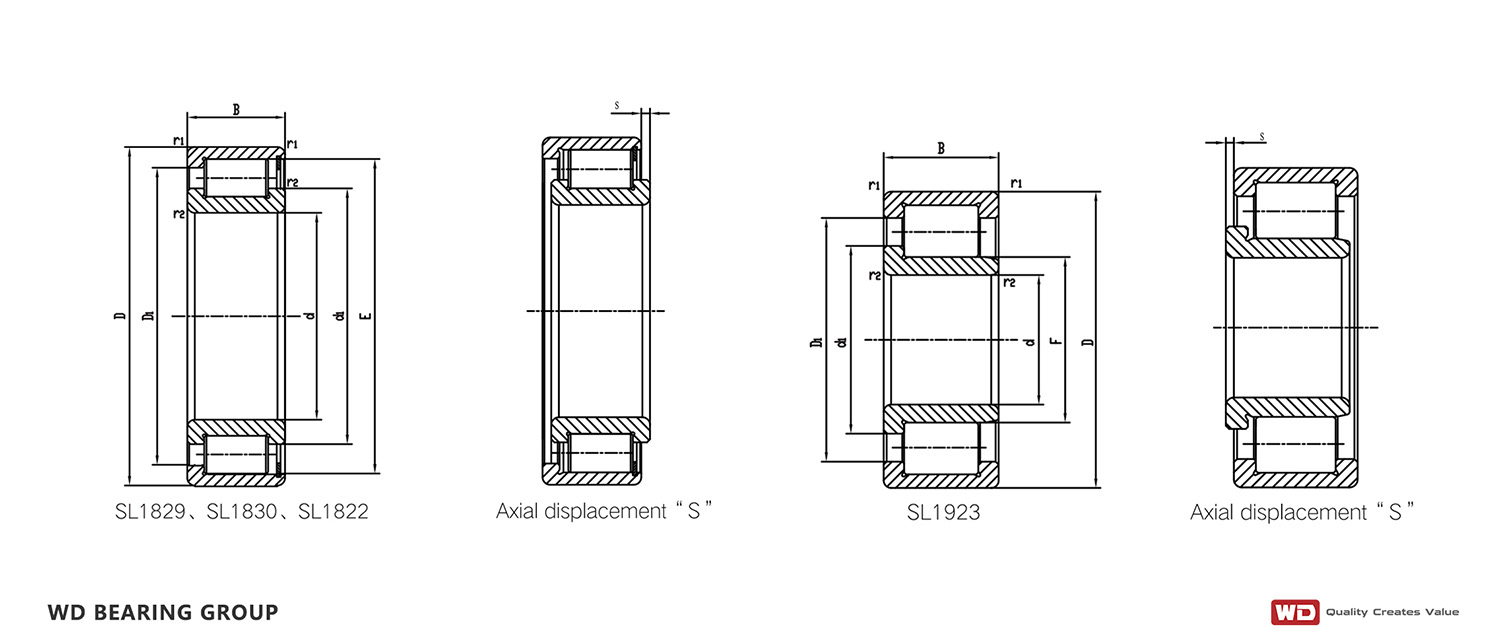

Single Row Full Complement Cylindrical Roller Bearings

Designation	Basic dimension					Load rating		Limiting speed	Mass	Installation dimension
	mm					KN		Limiting speed		mm
	d	D	B	r1,2min	S	Cr	Cor	rpm		d1≈	D1≈	E	F
SL183004	20	42	16	0.6	1.5	30.5	26	10500	0.11	28.8	32.8	36.81
SL182204	20	47	18	1	1	45.5	37	9700	0.16	30.3	36.9	41.47
SL183005	25	47	16	0.6	1.5	35	32	8900	0.12	34.6	38.5	42.51
SL182205	25	52	18	1	1	51	44.5	8400	0.18	35.3	41.9	46.52
SL192305	25	62	24	1.1	2	73	60	7600	0.37	36.7	47.5	-	31.72
SL183006	30	55	19	1	2	45	42	7600	0.2	40	45.4	49.6
SL182206	30	62	20	1	1	70	64	7000	0.3	42	50.6	55.19
SL192306	30	72	27	1.1	2	100	88	6400	0.56	43.5	56	-	38.3
SL183007	35	62	20	1	2	55	53	6700	0.26	44.9	51.3	55.52
SL182207	35	72	23	1.1	1	88	78	6100	0.44	47	59.3	63.97
SL192307	35	80	31	1.5	2	126	112	5500	0.74	50.7	65.8	-	44.68
SL183008	40	68	21	1	2	66	67	6000	0.31	50.5	57.1	61.74
SL182208	40	80	23	1.1	1	97	91	5400	0.55	54	66.3	70.94
SL192308	40	90	33	1.5	2	170	156	4850	1.01	57.5	75.2	-	51.12
SL183009	45	75	23	1	2	70	74	5500	0.4	55.3	62.2	66.85
SL182209	45	85	23	1.1	1	101	98	5100	0.59	57.5	69.8	74.43
SL192309	45	100	36	1.5	3	181	165	4450	1.37	62.5	80.3	-	56.1
SL183010	50	80	23	1	2	88	94	5100	0.43	59.1	67.7	72.33
SL182210	50	90	23	1.1	1	109	111	4600	0.64	64.4	76.7	81.4
SL192310	50	110	40	2	3	232	219	4050	1.81	68.3	89.7	-	60.72
SL183011	55	90	26	1.1	2	120	136	4400	0.64	68.5	78.8	83.54
SL182211	55	100	25	1.5	1	140	148	4200	0.87	70	84.1	88.81
SL192311	55	120	43	2	3	270	255	3700	2.28	75.5	99.3	-	67.11
SL182912	60	85	16	1	1	63	76	4550	0.29	69	74.4	78.55
SL183012	60	95	26	1.1	2	123	143	4200	0.69	71.7	82.1	86.74
SL182212	60	110	28	1.5	1.5	169	176	3800	1.18	76.8	93.9	99.17
SL192312	60	130	46	2.1	3	285	280	3400	2.88	82	105.8	-	73.62
SL182913	65	90	16	1	1	67	84	4150	0.31	75.7	81	85.24
SL183013	65	100	26	1.1	2	130	157	3900	0.73	78.1	88.4	93.09
SL182213	65	120	31	1.5	1.5	198	210	3550	1.57	82.3	100.7	106.25
SL192313	65	140	48	2.1	3.5	350	355	3100	3.52	90	116.5	-	80.69
SL182914	70	100	19	1	1	88	111	3850	0.49	81.2	87.8	92.31
SL183014	70	110	30	1.1	3	153	174	3650	1.02	81.5	95.6	100.28
SL182214	70	125	31	1.5	1.5	181	223	3350	1.66	87	105.2	111.45
SL192314	70	150	51	2.1	3.5	385	390	3000	4.33	93.5	121.6	-	84.14
SL182915	75	105	19	1	1	91	119	3600	0.52	86.3	92.8	97.41
SL183015	75	115	30	1.1	3	162	192	3400	1.06	89	103.2	107.9
SL182215	75	130	31	1.5	1.5	187	236	3200	1.75	91.8	110	116.2
SL192315	75	160	55	2.1	3.5	460	475	2750	5.3	101.6	131.5	-	91.22
SL182916	80	110	19	1	1	94	126	3450	0.55	91.4	98	102.51
SL183016	80	125	34	1.1	4	170	220	3150	1.43	95	111.7	117.4
SL182216	80	140	33	2	1.5	223	280	3000	2.15	98.6	119.3	126.3
SL192316	80	170	58	2.1	3.5	540	560	2550	6.32	109.5	142.1	-	98.24
SL182917	85	120	22	1.1	1	118	159	3200	0.81	96.4	105	109.58
SL183017	85	130	34	1.1	4	175	231	3000	1.51	99.4	116.1	121.95
SL182217	85	150	36	2	1.5	255	320	2800	2.74	104.4	126.3	133.75
SL192317	85	180	60	3	4	570	620	2400	7.34	118.2	150.9	-	107.01
SL182918	90	125	22	1.1	1	122	169	3050	0.84	102	110.7	115.75
SL183018	90	140	37	1.5	4	205	275	2800	1.97	106.1	124.5	130.65
SL182218	90	160	40	2	2.5	285	365	2650	3.48	110.2	133.3	141.15
SL192318	90	190	64	3	4	620	650	2400	8.83	117.5	152.5	-	105.26
SL182919	95	130	22	1.1	1	132	177	2900	0.86	106.7	117	122.25
SL182219	95	170	43	2.1	2.5	330	425	2410	4.17	122	147.3	155.95
SL192319	95	200	67	3	4	650	710	2240	10.2	126.6	161.9	-	114.65
SL182920	100	140	24	1.1	1.5	152	203	2700	1..14	113.4	125.7	130.95
SL183020	100	150	37	1.5	4	216	300	2600	2.15	115.7	134	140.2
SL182220	100	180	46	2.1	2.5	390	510	2300	5.13	127.5	154.3	163.35
SL192320	100	215	73	3	4	790	850	2110	13	132.7	172.8	-	119.3
SL182922	110	150	24	1.1	1.5	155	213	2490	1.23	124	136.2	141.5
SL183022	110	170	45	2	5.5	280	385	2350	3.5	127.3	149.3	156.7
SL182222	110	200	63	2.1	4	450	580	2130	7.24	137	168	177.6
SL192322	110	240	80	3	5	950	970	1840	17	151.1	199.9	-	134.27
SL182924	120	165	27	1.1	1.5	199	285	2290	1.73	134.8	149	154.3
SL183024	120	180	46	2	5.5	295	425	2170	3.8	138.8	160.7	168.15
SL182224	120	215	58	2.1	4	530	720	1950	9.08	150.7	183	192.9
SL192324	120	260	86	3	5	1130	1230	1710	22.3	164.2	213.1	-	147.39
SL182926	130	180	30	1.5	2	238	350	2110	2.33	146	161.1	167.15
SL183026	130	200	52	2	5.5	425	600	2000	5.65	148.6	175.5	184.4
SL182226	130	230	64	3	5	620	850	1810	11.25	162.3	197	207.75
SL192326	130	280	93	4	5	1260	1380	1600	27.95	176	227.9	-	157
SL182928	140	190	30	1.5	2	260	375	1960	2.42	157	174	180
SL183028	140	210	53	2	5.5	450	660	1840	6.04	162.2	189.5	198.4
SL182228	140	250	68	3	5	720	1000	1690	14.47	173.9	211.1	222.55
SL192328	140	300	102	4	7	1410	1570	1500	34.9	187.8	243.4	-	168.45
SL182930	150	210	36	2	2.5	340	480	1810	3.77	169	189.6	196.75
SL183030	150	225	56	2.1	7	475	700	1760	7.33	170	198	207.45
SL182230	150	270	73	3	6	820	1160	1580	18.43	185.5	225.2	237.35
SL192330	150	320	108	4	7	1680	1900	1380	42.1	203.3	263.5	-	182.49
SL182932	160	220	36	2	2.5	350	510	1710	4	179.7	200.5	207.6
SL183032	160	240	60	2.1	7	540	800	1620	8.8	184.8	215.8	225.45
SL182232	160	290	80	3	6	1020	1470	1410	23	208.7	253.4	267.1
SL192332	160	340	114	4	7	1900	2170	1280	49.7	219	284.4	-	196.38
SL182934	170	230	36	2	2.5	365	540	1610	4.3	190.6	211.3	218.45
SL183034	170	260	67	2.1	7	700	1050	1510	12.2	198.1	232.7	243.55
SL182234	170	310	86	4	7	1140	1660	1330	28.65	220.3	267.4	281.9
SL192334	170	360	120	4	7	2070	2380	1240	59.2	226.6	295	-	203.55
SL182936	180	250	42	2	3	455	680	1530	6.2	200.7	224	231.85
SL183036	180	280	74	2.1	7	810	1240	1410	16.1	212.2	249.4	261
SL182236	180	320	86	4	7	1180	1760	1270	29.8	232.4	279.5	294
SL192336	180	380	126	4	7	2190	2600	1160	69.1	245	312.9	-	221.56
SL182938	190	260	42	2	2	510	770	1450	6.5	211.5	238.5	244.15
SL183038	190	290	75	2.1	9	830	1300	1350	17	221.8	259	270.6
SL182238	190	340	92	4	9	1300	1900	1210	35.65	243.5	295.5	311.5
SL192338	190	400	132	5	7	2500	2950	1120	80.3	250	326.8	-	224.43
SL181840	200	250	24	1.5	2	178	320	1450	2.57	216.6	231.6	237.6
SL182940	200	280	48	2.1	3	610	940	1360	9.1	225.5	252.4	261.6
SL183040	200	310	82	2.1	9	950	1510	1270	21.8	236.6	276.2	288.6
SL182240	200	360	98	4	9	1410	2010	1180	43.12	246.6	302.4	319.4
SL192340	200	420	138	5	7	2800	3300	1060	92.1	265.7	347.2	-	238.45
SL181844	220	270	24	1.5	2	187	350	1320	2.8	237.3	252.3	258.5
SL182944	220	300	48	2.1	3	650	1030	1250	9.9	246.3	273.2
SL183044	220	340	90	3	9	1150	1820	1170	28.4	254.6	299.2	312
SL192344	220	460	145	5	7	3000	3450	950	111.2	297	388.3	-	266.71
