High-precision Cylindrical Roller Bearings

Rollers

The rollers inside WD cylindrical roller bearings are critical components because of their role in load distribution. Although appearing “flat” these rollers utilize a profile which is more logarithmic in shape. Through a line contact between the rollers and the raceway, radial load capacity and impact load capacity for cylindrical roller bearings is as robust as it comes. For abnormal conditions, the WD engineering team provides local support and recommendations for alternative designs.

The surface finish of the cylindrical rollers helps to optimize fluid film thickness. This improves the rolling motion of the rollers and offers greater operational stability.

Rings

The inner and/or outer rings of cylindrical roller bearings guide the rollers with ribs. Ring assemblies are separable for ease of installation and press-fit individually onto the shaft and into housing.

The “ribless ring” of a cylindrical roller bearings move axially and are used as a free-end, or float bearing. Cylindrical roller bearings also offer higher stiffness, lower friction, and longer service life compared to other bearings thanks to the way they accommodate axial displacement.

Snap rings and grooves are al

Cages

Cylindrical roller bearings utilize a cage or are manufactured as a full complement bearing to accommodate higher loads at the expense of speed. Steel, brass, and polyamide cages are common, with PEEK and PPS being less common.

Most applications, and even high-heat applications, benefit most from a steel cage. Additional chemical resistance and speed benefits are gleaned from a polyamide cage if operating temperatures do not rise about 70 degrees celsius, or about 160 degrees fahrenheit.

Types

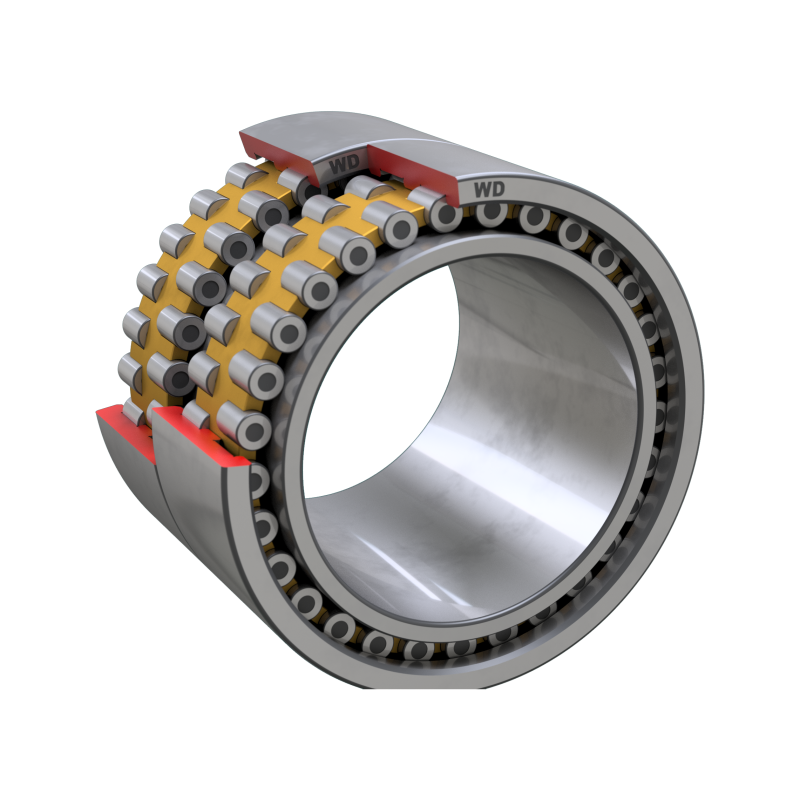

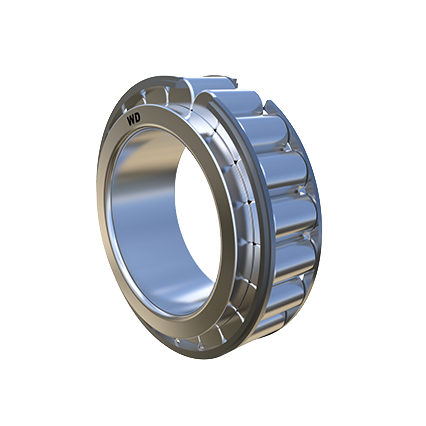

Cylindrical roller bearings are manufactured into single, double, or multi-row configurations. The different types of bearings are designated NU, NJ, NP, NUP, N, NF for single row cylindrical bearings and NNU, NN for double row cylindrical bearings.

The range of WD cylindrical roller bearings is made up of many types and often denote differences in the inner ring or outer ring design:

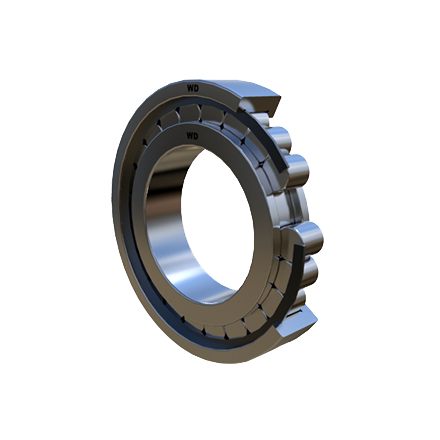

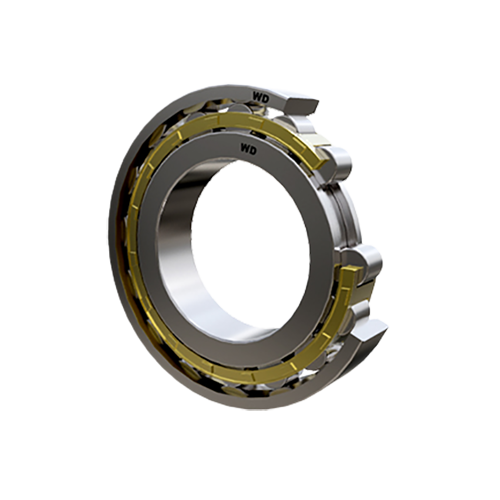

● WD single row cylindrical roller bearings – commonly NU, NJ, NUP and N designs.

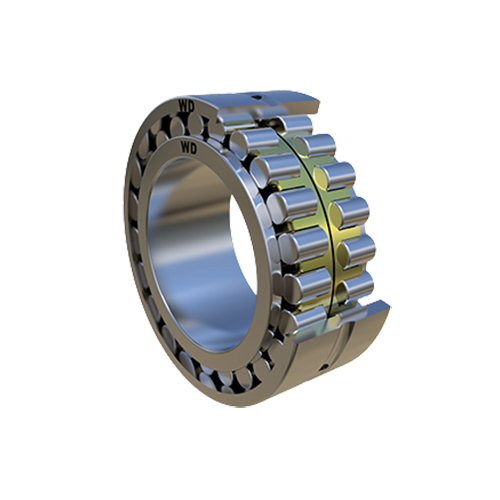

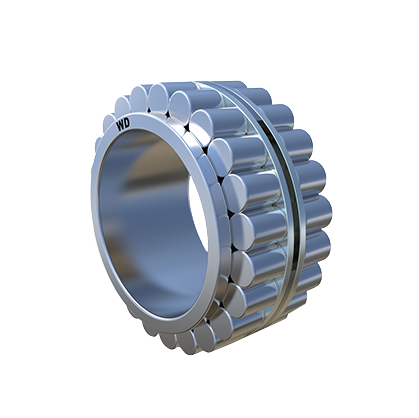

● WD double row cylindrical roller bearings – NNU and NN designs.

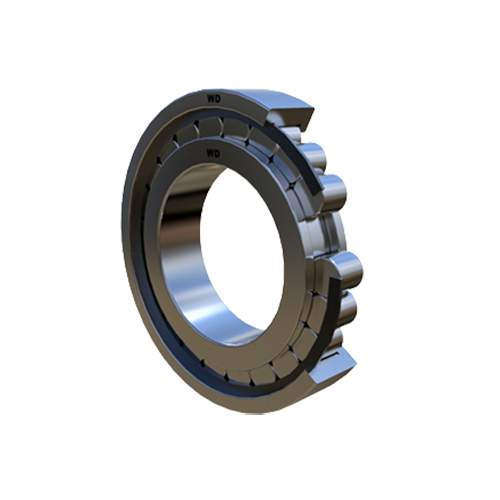

● WD single row full complement cylindrical roller bearings – mainly NCF and NJG designs.

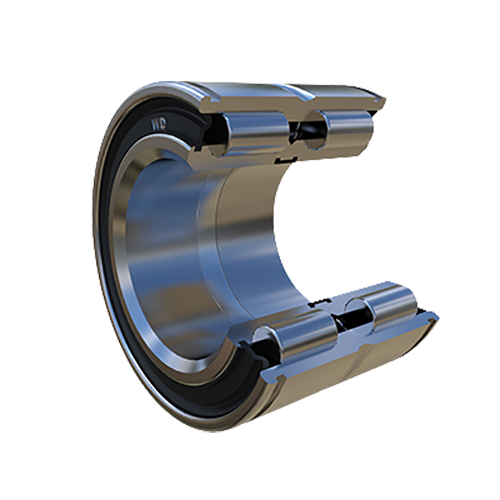

● WD double row full complement cylindrical roller bearings – NNF design.

The most popular configuration is the single row cylindrical roller bearing. This is due to simple assembly, mounting, and un-mounting procedures thanks to their separability. Where the single-row configuration is popular, the double and multi-row configurations offer a greater radial load capacity and higher radial rigidity.

Cylindrical Roller Bearings are classified into the following types based on location, quantity, and type of ribs on the inner and/or outer rings.

NU, N, and NN are often free-end (“free” or “float”) bearings and are installed on the shaft away from the drive end. NJ and NF offer axial resistance in one direction while the NUP offers axial resistance in both directions, can be used as fixed-end bearings, and are installed near the drive.

Flexibility

Cylindrical roller bearings are as flexible as bearings come. Their components are interchangeable with other manufacturer’s bearings with the same dimensional size and number.

The mounting arrangements can be configured in a variety of ways and match the load capacity for a given its width, inner diameter, and outer diameter.

Cylindrical roller bearings can have rings that move freely in the axial direction (for bearings without ring ribs) for applications that experience thermal expansion of the shaft.

They are even available with seals or manufactured with a split design. Seals will protect your bearings from contaminants like water, dust, and mud and provide a smooth operation with an improved lubricant retention. Cylindrical roller bearings designed with a split offer a simpler maintenance and replacement process for applications with difficult access.
